Trusted by customers world-wide, T&R Test Equipment Ltd. is the UK's leading manufacturer of heavy current and high voltage electrical test equipment. Quality and reliability are of paramount importance to us, and our ISO9001 approval reflects this. Our broad product range includes relay test equipment, primary current injection systems, micro-ohmmeters, DC cable test sets and AC flash testers.

We pride ourselves on the ease of use of our products, and believe in putting the engineer in charge of the tests. Most of our units are manually controlled, and have large, easy to read displays and meters.

T&R Test Equipment’s products are now in service in over 90 countries throughout the world, and are approved nationally and internationally by public utilities and private users.

15-16 Woodbridge Meadows, Guildford, GU1 1BJ, United Kingdom
Phone:+44 (0)1483 207428 Fax: +44 (0)1483 511229

**Please note, this website is in the process of being updated and some information listed is not correct, please contact our sales office on +44 (0)1483 207 428 or e-mail: sales@trtest.com for any queries

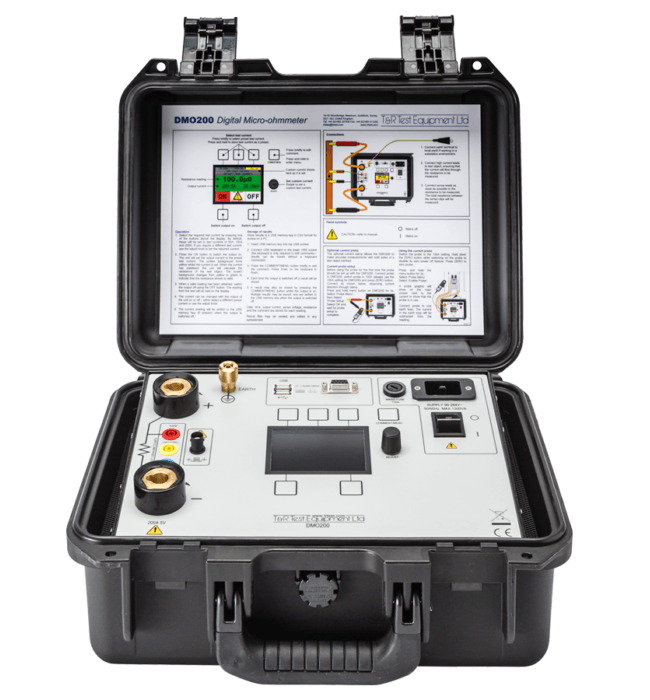

DMO200 Micro-ohmmeter

200Adc Micro-ohmmeter

Light weight (6.9kg)

Pre-settable test current

0.1microohm resolution

Data storage to USB key

Universal supply voltage

The NEW DMO200 is the lightest micro-ohmmeter in its class. The unit features pre-settable test current, automatic data storage to a USB memory key and a colour screen. Supplied complete with a 3m lead set, USB keyboard and USB memory key.
